Compressed Biscuit Production Line

A compressed biscuit production line is specialized biscuit manufacturing equipment for producing high-energy compressed biscuits — dense, long-shelf-life emergency rations, outdoor food, and hardtack-style biscuits.

Get a Line Proposal Talk to an Engineer
White-background studio reference illustration of two biscuit compression presses and their conveyors

Product Overview

Unlike ordinary biscuit lines, it adds the crushing and re-compression stages that give compressed biscuits their extreme density, durability, and portability. Wanttone’s compressed biscuit production line automates the complete process: powder mixing, primary forming and baking, cooling, crushing, optional external mixing with nutritional additives, and final high-pressure compression and packaging.

This is a product category where process control decides everything. Mixing temperature must be managed so powder does not clump; baking time and temperature must match biscuit thickness and formula; and the final compression step must hit exact density targets for shelf life and texture. In 2007, Wanttone participated in a research project of the Quartermaster Research Institute of the Chinese People’s Liberation Army General Logistics Department, developing a fully automatic production line and new process technology for modern compressed biscuits.

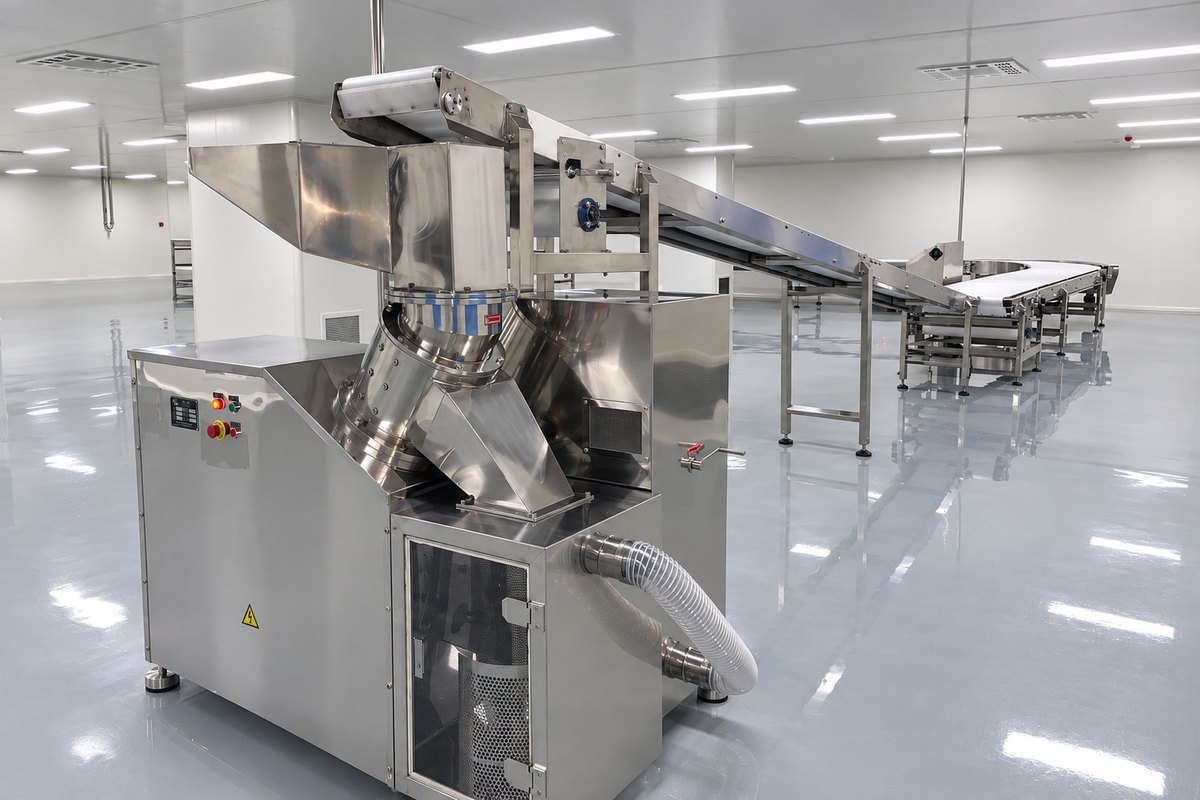

Biscuit crusher used before the compressed-biscuit forming stage
Biscuit crushing equipment

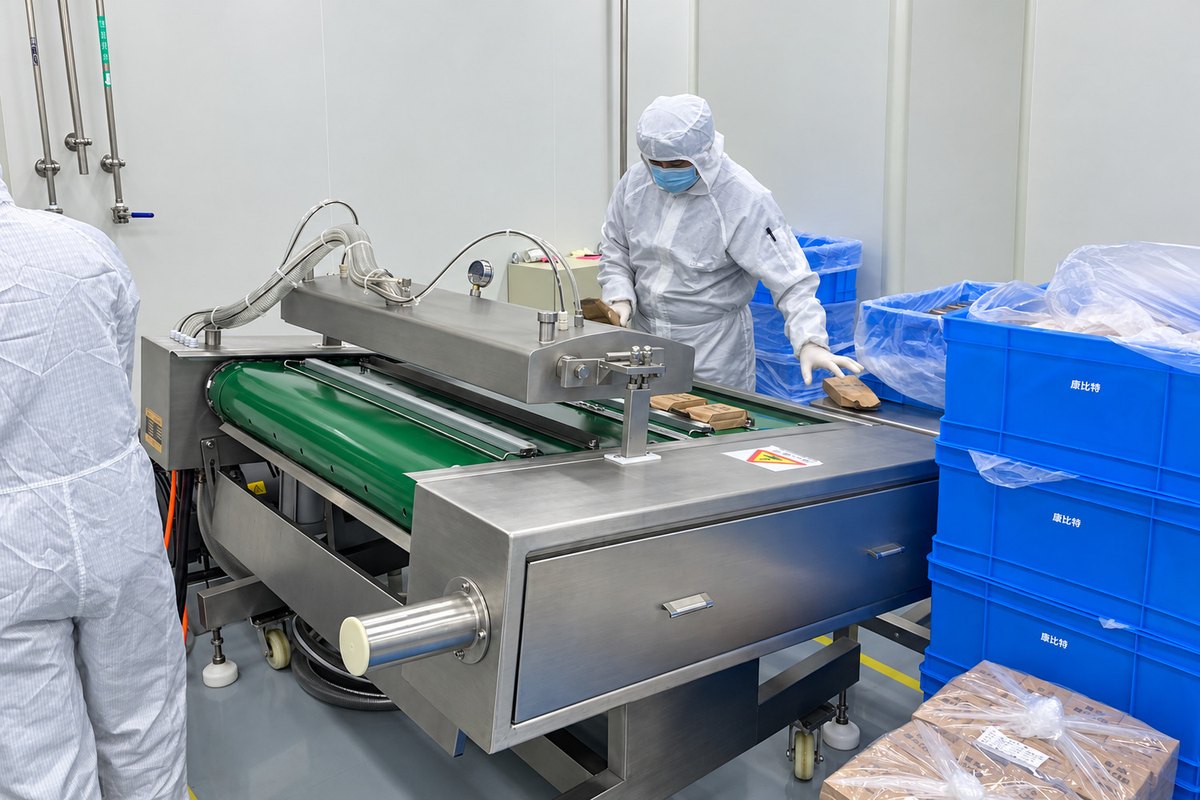

Vacuum packing equipment in the compressed-biscuit production route
Vacuum packing

Capabilities & Applications

Key Features

  • Compressed-Biscuit Process Experience

    The line builds on Wanttone’s compressed-biscuit production-line R&D experience.

  • Complete Unique Process Chain

    Integrated crushing and re-compression stages — the steps that define compressed biscuits — are fully automated and synchronized with baking and cooling.

  • Precise Temperature Management

    Controlled mixing temperature prevents powder clumping, while multi-zone ovens bake dense biscuits through to the core with a golden surface.

  • Nutritional Flexibility

    An optional external mixing stage adds dried fruits, meat floss, vitamins, or protein fortification evenly into the crushed base for customized ration formulas.

  • Long Shelf-Life Output

    Final high-pressure compression produces strong, compact biscuits that resist breakage and store for extended periods — ideal for emergency, military, outdoor, and maritime supply.

  • Full Automation, Low Labor

    From raw powder to wrapped ration blocks, the line runs continuously with a minimal number of operators and consistent quality inspection points.

Applications

  • Compressed emergency-ration biscuits, high-energy outdoor and expedition food, military and civil-defense supplies, maritime and disaster-relief provisions, meal-replacement biscuits, and fortified nutritional biscuits. Suitable for government and institutional suppliers, emergency-food manufacturers, outdoor brands, and industrial biscuit factories entering the high-energy food market.

From Preparation to Packing

  1. Powder Mixing

    Prepare and condition the recipe to the specified consistency for stable downstream processing.

  2. Forming

    Shape and portion the product consistently to the required format and piece weight.

  3. Baking & Cooling

    Coordinate baking and cooling conditions to achieve the target color, moisture, and handling stability.

  4. Crushing

    Size and separate the product cleanly for the next handling or packing stage.

  5. External Mixing (Optional)

    Prepare and condition the recipe to the specified consistency for stable downstream processing.

  6. Compression & Packaging

    Compress each portion to the specified density and transfer the finished product into packing.

Specifications & Configuration

Technical Parameters for Compressed Biscuit Production Line
ItemSpecification
Process flowPowder mixing → forming → baking → cooling → crushing → external mixing (optional) → compression → packaging
Working width / models600 / 800 / 1000 / 1200 / 1500 / 1800 mm (customizable)
Production capacityCustomizable by model and oven length (industrial scale)
Mixing systemTemperature-controlled powder/oil/water mixing, anti-clumping design
Baking ovenGas / electric / diesel tunnel oven; time and temperature precisely zoned to formula
Compression unitHigh-pressure final forming, density adjustable to specification
Optional modulesDried-fruit/meat-floss external mixing, metal detection, ration-block wrapping
Control systemPLC + touchscreen, full-line synchronization
MaterialSUS304 stainless steel food-contact parts

The Wanttone Difference

Wanttone’s compressed-biscuit experience includes participation in the Chinese PLA General Logistics Department’s Quartermaster Research Institute project to develop a fully automatic compressed biscuit production line and new process technology, and designation as an emergency military-supply mobilization enterprise. We combine this experience with 40-plus years of biscuit machinery heritage, ISO 9001 manufacturing, and our own operating biscuit factory. We support the whole project: formula development, factory design, installation, commissioning, operator training, and lifetime after-sales service, for customers supplying governments, relief organizations, and outdoor brands worldwide.

Frequently Asked Questions

What makes a compressed biscuit line different from a normal biscuit line?

Two extra stages — crushing the baked biscuit into granules and re-compressing the mixture under high pressure — create the dense, long-keeping structure. These stages, plus temperature-controlled powder mixing, require specialized equipment that standard biscuit lines do not include.

Can the line meet military or emergency-ration specifications?

Specific requirements need to be reviewed for the proposed formula, equipment configuration and packaging. We can discuss target density, energy content, nutrition profile and shelf life, along with product testing during commissioning.

Can we add nutritional fortification or flavor ingredients?

Yes. The optional external mixing stage blends dried fruits, meat floss, vitamins, minerals, or protein powders uniformly into the crushed biscuit base before final compression.

What shelf life can compressed biscuits achieve?

Shelf life depends on the formula, moisture control, and packaging, but properly produced compressed biscuits routinely achieve multi-year storage. We advise on moisture targets and barrier packaging to hit your required shelf life.

Do you support formula development and operator training?

Absolutely. Wanttone provides compressed-biscuit formula and process support as part of the turnkey package, plus on-site installation, commissioning, and full operator and maintenance training, with lifetime technical support afterward.
