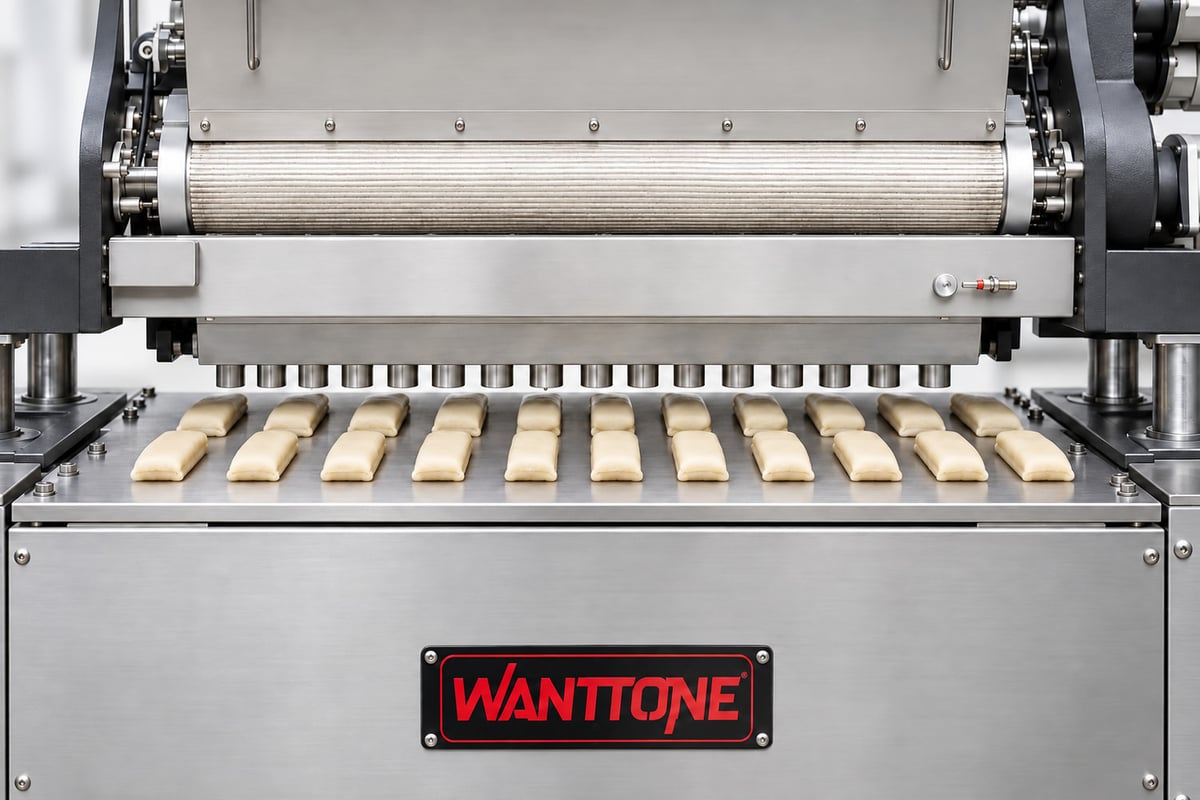

A center-filled cookie machine is an encrusting machine that wraps an outer dough around an inner filling — date paste, jam, chocolate, or nut fillings — and forms it into sealed, uniform pieces.
It is the essential equipment for producers of ma’amoul, date bars, filled cookies, and stuffed pastries who need consistent filling ratios and clean sealing at commercial speed.
The Wanttone center-filled cookie machine combines a dough hopper and one or two filling hoppers with co-extrusion dies, supporting four forming methods: twisting, stuffing (encrusting), strip cutting, and wire cutting. That means one machine can produce round filled ma’amoul, extruded and cut date bars, twisted filled cookies, and two-color stuffed varieties — with servo-driven accuracy and touch-screen control of every parameter.
Co-extrusion dies wrap dough evenly around date paste, jam, or nut fillings, delivering a consistent dough-to-filling ratio and reliable sealing with no leakage during baking.
Twisting, stuffing, strip cutting, and wire cutting let you run ma’amoul, date bars, and filled cookies on a single platform.
Up to 50 encrusting cycles per minute, 100 strip cuts/min, 100 wire cuts/min, and 35 twists/min, synchronized with your oven.
±4% for single-color dough and ±5% for two-color products (checked every 5 pieces) protect margins on costly filling ingredients.
Optional dual filling hoppers produce two-color or double-filled products for premium ranges.
SUS304 stainless rollers, Teflon-treated flow channels, food-grade nylon filling dies, and a mold trolley for quick changeover and cleaning.
Confirm the incoming material or product condition, target throughput, infeed height and available utilities.
Co-extrusion dies wrap dough evenly around date paste, jam, or nut fillings, delivering a consistent dough-to-filling ratio and reliable sealing with no leakage during baking.
Match discharge height, line speed, control signals, guarding and cleaning access with the next operation.
| Item | Specification |
|---|---|
| Available Models (Working Width) | 600 / 800 / 1,000 / 1,200 / 1,500 / 1,800 mm |
| Die Spacing | 58.5–60 mm (by model) |
| Forming Methods | Twisting, stuffing (encrusting), strip cutting, wire cutting |
| Max Operating Speed | Twist 35/min; stuffing 50/min; strip cut 100/min; wire cut 100/min |
| Dough Weight Tolerance | Single color ±4%; two color ±5% (per 5 pieces) |
| Control | PLC touch screen, servo-driven rollers and pumps |
| Power Supply | 380 V/50 Hz (customizable) |
Production speed is determined by line oven length and baking time. Custom molds for ma’amoul patterns and bar cross-sections are available.
Filled products demand both mechanical precision and recipe know-how — date paste viscosity, dough extensibility, and sealing behavior all interact. Wanttone engineers test encrusting setups with real fillings in our own food factory before delivery, drawing on 40+ years of biscuit machinery experience since 1981 and our in-house Foodstuff Machinery Research Institute. With ISO 9001 quality management, custom mold design for traditional ma’amoul patterns, and a one-stop service covering factory design, commissioning, operator training, and lifetime maintenance, we help you industrialize heritage recipes without losing their authentic character.
Yes. It is designed for encrusted products: round stamped ma’amoul, extruded and strip-cut date bars, fig bars, and other filled cookies, using interchangeable molds.
Date paste, fig paste, fruit jams, chocolate, and nut-based fillings. Filling hoppers and pumps are selected to match your filling viscosity and particle size.
Servo-driven dough and filling pumps are adjusted independently from the touch screen, so the ratio is set digitally and stays consistent across production.
Up to 50 encrusting cycles per minute (100/min for strip and wire cutting). Final throughput depends on product weight, oven length, and baking time.
Yes. Provide samples or drawings and we will manufacture custom dies and stamping molds reproducing your traditional designs.
