Mooncake Production Line

A mooncake production line is a fully automatic system that produces traditional filled pastries — Cantonese mooncakes, ma’amoul, pineapple cakes, and other stuffed cakes — through continuous dough preparation, filling encrusting, pattern stamping, tray arranging, baking, cooling, and packaging.

Get a Line Proposal Talk to an Engineer
Mooncake encrusting, stamping and tray arranging equipment

Product Overview

Wanttone’s mooncake production line replaces labor-intensive manual forming with synchronized machines that deliver identical weight, filling ratio, and surface pattern on every piece, at the volumes peak festive seasons demand.

The critical stage is encrusting: wrapping lotus seed paste, red bean, date, or nut filling inside a thin, uniform dough skin without tearing or trapping air. The encrusting machine controls the skin-to-filling ratio digitally; the stamping machine impresses sharp customized patterns — logos, festive motifs, traditional characters — and the tray arranging machine spaces pieces evenly for consistent baking and glazing.

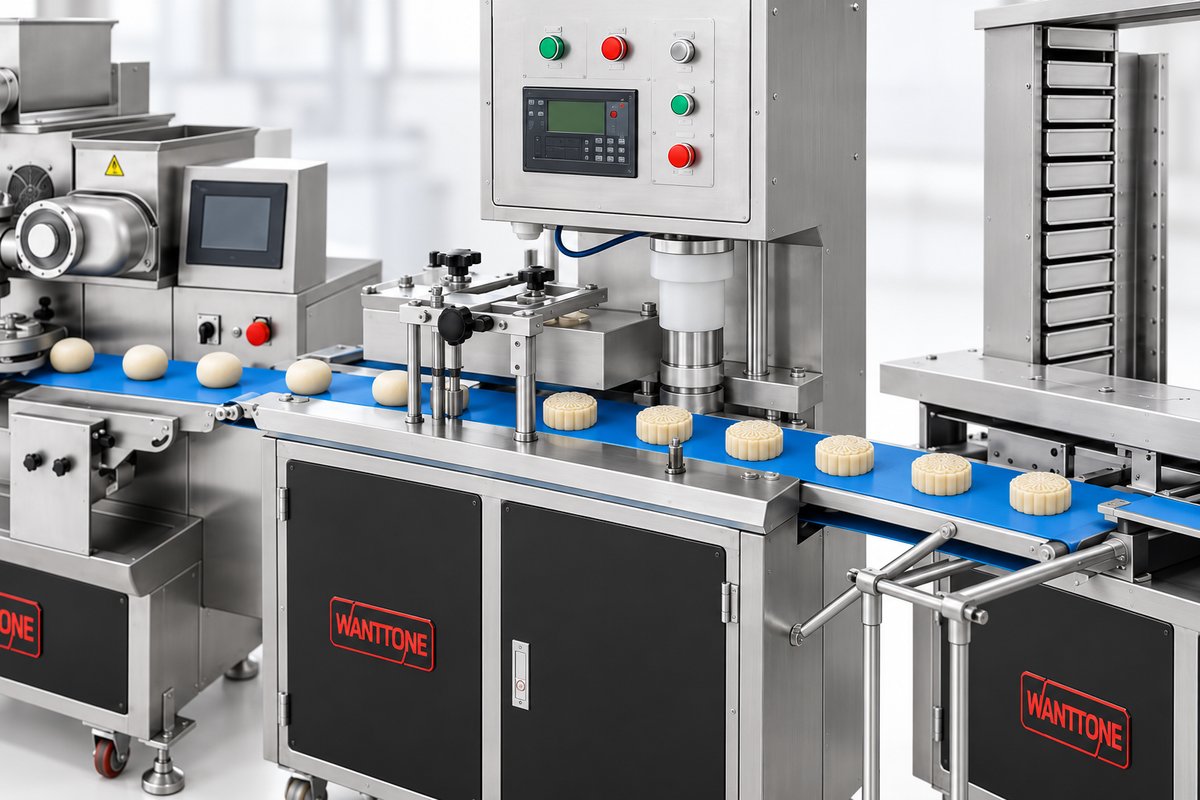

Pale mooncake dough portions and stamped mooncakes on the existing forming-line conveyor

Capabilities & Applications

Key Features

  • Automatic Encrusting Technology

    Precisely wraps fillings inside dough skins at adjustable ratios, handling lotus paste, bean paste, date, mixed nuts, and other dense fillings without damage.

  • High-Definition Pattern Stamping

    Interchangeable stamping molds press crisp designs on every mooncake; custom molds reproduce your brand logo or seasonal artwork.

  • Automatic Tray Arranging

    Pieces are aligned on baking trays automatically, ensuring even hot-air circulation, uniform color, and high tray density without manual labor.

  • Flexible Baking & Glazing

    Zoned tunnel or rack ovens manage the multi-stage bake, including egg-wash glazing intervals, for the glossy golden finish premium mooncakes require.

  • Hygienic, Easy-Changeover Design

    Food-grade stainless steel contact parts and tool-free mold changes support strict sanitation and fast product changeovers.

  • Multi-Product Versatility

    One line covers mooncakes, ma’amoul, date bars, pineapple cakes, and other stuffed pastries, extending utilization beyond the Mid-Autumn season.

Applications

  • The line produces Cantonese-style mooncakes, mini mooncakes, ma’amoul, date-filled pastries, pineapple cakes, and regional stuffed cakes. Typical customers include industrial bakeries preparing for Mid-Autumn peaks, Chinese and Southeast Asian pastry brands, Middle Eastern ma’amoul producers, hotel and gift-box suppliers, and factories diversifying into high-margin seasonal pastries.

From Preparation to Packing

  1. Dough Mixing

    Prepare and condition the recipe to the specified consistency for stable downstream processing.

  2. Encrusting

    Shape and portion the product consistently to the required format and piece weight.

  3. Stamping

    Shape and portion the product consistently to the required format and piece weight.

  4. Tray Arranging

    Shape and portion the product consistently to the required format and piece weight.

  5. Baking/Glazing

    Control time and temperature to achieve the target structure, color, and moisture.

  6. Cooling & Packaging

    Cool the finished product to a stable packing temperature, then pack it in the agreed format.

Specifications & Configuration

Technical Parameters for Mooncake Production Line
ItemSpecification
Product weight range30 – 250 g per piece (adjustable)
Capacity60 – 150 pieces/min (model dependent, customizable)
Skin-to-filling ratioDigitally adjustable
Stamping moldsInterchangeable, custom patterns available
Oven optionsTunnel or rack oven (gas / electric)
Process flowDough mixing → encrusting → stamping → tray arranging → baking/glazing → cooling → packaging
ConstructionFood-grade stainless steel
ControlPLC + touch screen

Note: Capacity and configuration are customized to your product range and seasonal volume.

The Wanttone Difference

Wanttone’s credibility in traditional pastry is literal: through our own food division, we produce traditional pastries — including mooncakes — using our own equipment. That dual role as machine builder and pastry producer means our encrusting ratios, stamping clarity, and baking curves have been refined against real festival-season production pressure, not just factory acceptance tests. Our engineering lineage reaches back to the 1981 Yangjiang Biscuit Equipment General Factory, and our Foodstuff Machinery Research Institute continuously develops forming technology for filled products. As an ISO 9001-certified manufacturer, we guarantee build quality from materials to final inspection, and our turnkey service covers plant design, recipe support, installation, operator training, and lifetime maintenance. For a product where appearance, filling integrity, and timing decide commercial success, Wanttone offers something rare: a supplier who has stood on both sides of the production line.

Frequently Asked Questions

What fillings can the encrusting machine handle?

Lotus seed paste, red bean paste, date paste, mixed nuts, salted egg yolk centers, and similar dense fillings; the skin-to-filling ratio is digitally adjustable per recipe.

Can the line make products other than mooncakes?

Yes — the same line produces ma’amoul, date bars, pineapple cakes, and other stuffed pastries, earning returns outside the festive season.

Can I get custom patterns on the mooncakes?

Absolutely — we manufacture custom stamping molds with your logo or artwork, interchangeable for fast changeovers.

What capacity do I need for seasonal production?

Standard lines run 60–150 pieces per minute; we size the configuration around your peak-season volume.

What support is included with the line?

Whole-plant design, installation and commissioning, recipe guidance, operator training, and lifetime maintenance support.
