Cupcake Production Line

A cupcake production line is a fully automatic system that turns cake batter into uniformly baked, cup-formed cakes — dispensing paper cups, depositing exact batter portions, baking them through a zoned tunnel oven, then cooling and de-molding for packaging.

Get a Line Proposal Talk to an Engineer
Reference illustration of Cupcake Production Line equipment

Product Overview

Wanttone’s cupcake production line integrates batter mixing and aeration, automatic paper cup placing, multi-head depositing, tunnel baking, and cooling into one continuous flow, delivering consistent weight, volume, and crumb structure at industrial scale.

The depositing stage defines product quality: the cupcake depositing machine meters aerated batter into each paper cup with gram-level repeatability, so every cake rises to the same height and bakes to the same color. Recipe-flexible depositing heads and interchangeable cup formats let one line run standard cupcakes, muffins, and mini cup cakes with fast changeovers.

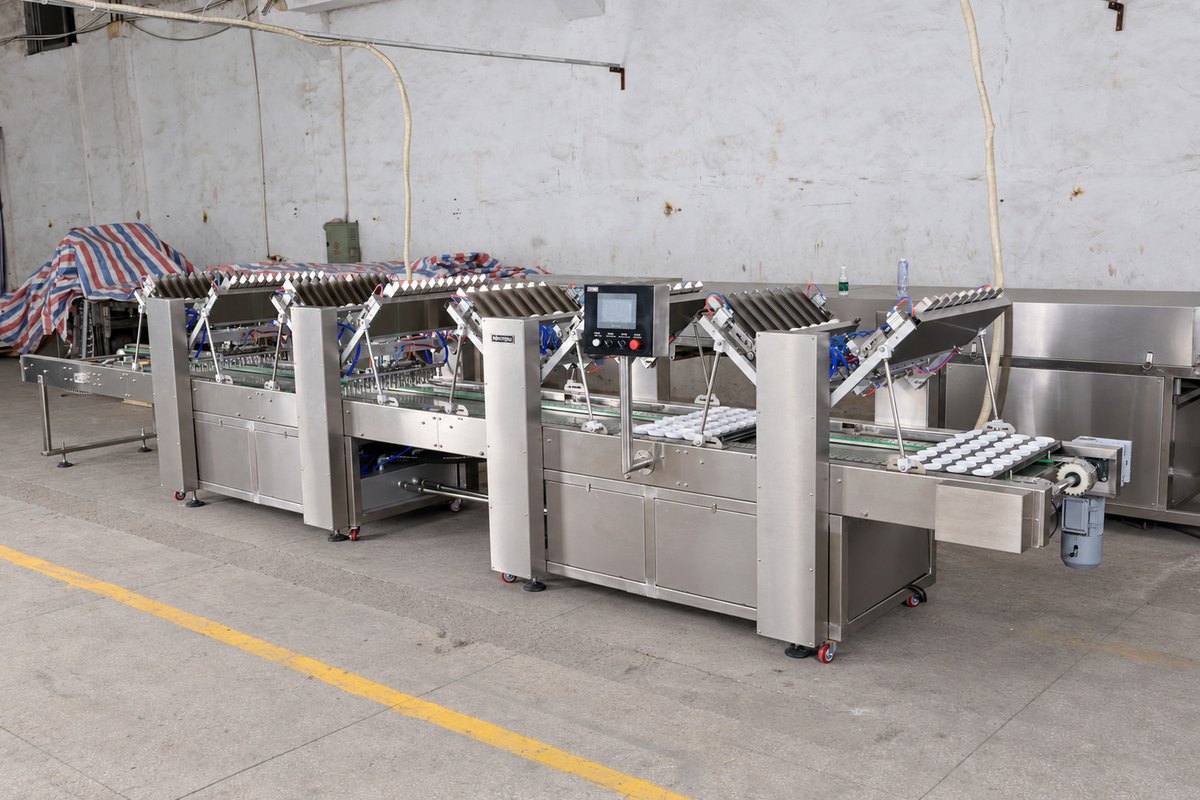

Retouched original cupcake paper cup placing equipment with cup trays and conveyors
Paper cup placing equipment

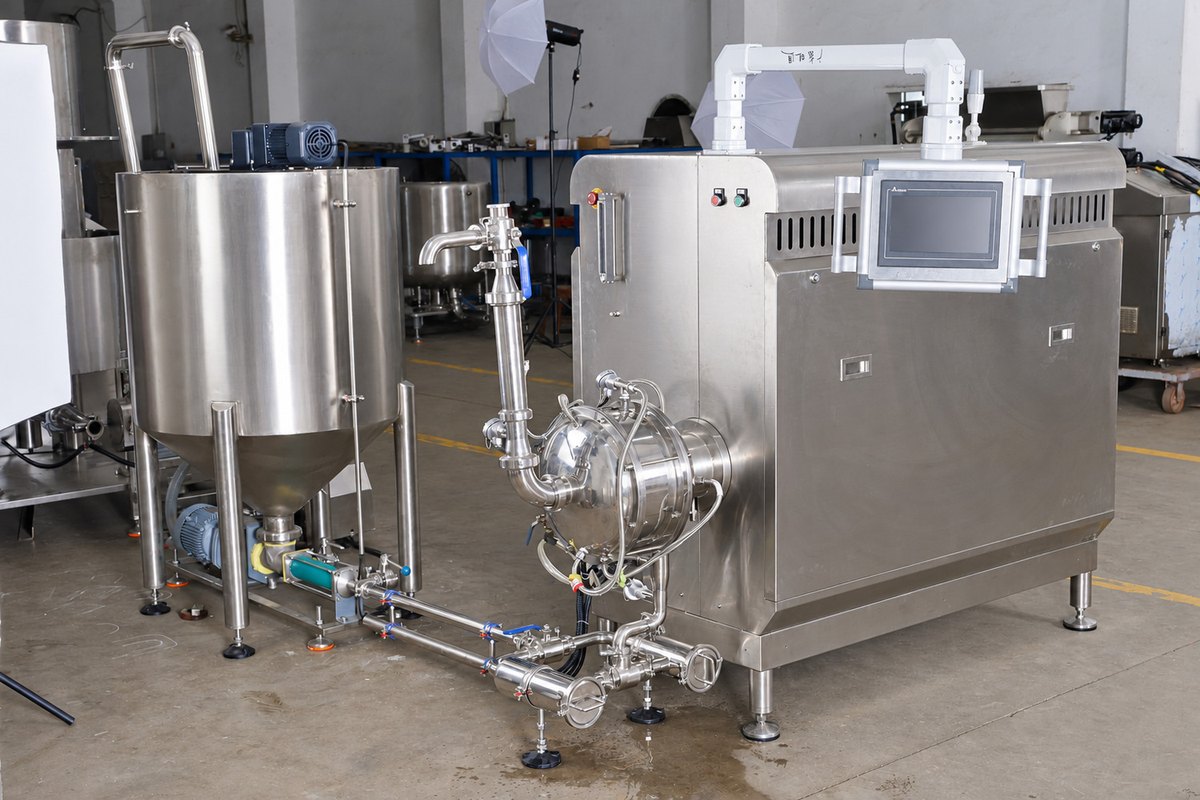

Retouched original cake batter aeration unit with holding tank, sanitary piping and pumps
Batter aeration equipment

Capabilities & Applications

Key Features

  • Automatic Paper Cup Placing

    A cup denesting and placing unit sets paper cups into the baking trays or molds at line speed, eliminating manual cup loading and keeping every cup perfectly positioned for depositing.

  • Precision Batter Depositing

    The multi-head depositing machine doses batter at exact, adjustable weights, giving uniform cake volume and minimizing giveaway; piston-type dosing handles both fluid sponge batter and thicker muffin batter.

  • Stable Batter Aeration

    Continuous mixing and aeration hold batter density constant, so the first cake and the ten-thousandth cake share the same fine, even crumb.

  • Zoned Tunnel Baking

    A gas, electric, or diesel tunnel oven with independently controlled zones develops full volume, golden top color, and controlled moisture for long shelf life.

  • Hygienic Food-Grade Construction

    Food-grade stainless steel contact parts, enclosed conveying, and easy-clean depositing heads support modern bakery sanitation standards.

  • Multi-Product Flexibility

    Change cup size, depositing volume, and recipe to produce cupcakes, muffins, and mini cup cakes on the same line; filling and icing units can be added downstream.

Applications

  • The line produces cupcakes, muffins, mini cup cakes, and filled cup cakes for retail and food-service markets. Typical customers include industrial cake bakeries, private-label dessert manufacturers, biscuit and pastry groups adding ambient cake capacity, and regional brands scaling up from semi-automatic depositing to continuous production.

From Preparation to Packing

  1. Batter Mixing

    Prepare and condition the recipe to the specified consistency for stable downstream processing.

  2. Aeration

    Prepare and condition the recipe to the specified consistency for stable downstream processing.

  3. Cup Placing & Depositing

    Shape and portion the product consistently to the required format and piece weight.

  4. Baking

    Control time and temperature to achieve the target structure, color, and moisture.

  5. Cooling

    Stabilize the product temperature and structure before downstream handling.

  6. De-Molding & Packaging

    Release finished pieces cleanly from their molds and transfer them into packing without damage.

Specifications & Configuration

Technical Parameters for Cupcake Production Line
ItemSpecification
Capacity (typical)100 – 600 kg/h, by cup size and oven length (customizable)
Cup formatsStandard / muffin / mini paper cups, interchangeable
Depositing systemMulti-head piston depositor, weight adjustable
Batter systemMixer + continuous aeration unit
Oven typeTunnel oven, 2–4 zones (electric / gas / diesel)
Process flowBatter mixing → aeration → cup placing → depositing → baking → cooling → de-molding → packaging
ConstructionFood-grade stainless steel contact parts
ControlPLC + touch screen, recipe storage

Note: All parameters are customizable to your product range, capacity target, and workshop layout.

The Wanttone Difference

Cake lines succeed or fail on two things: batter stability and baking uniformity — both are disciplines Wanttone has refined for over 40 years. Our predecessor, the Yangjiang Biscuit Equipment General Factory, began building automated bakery machinery in 1981, and our own food factory runs commercial cake and pastry production today, so our depositing accuracy and oven zoning are proven under real daily output, not just acceptance tests. As an ISO 9001-certified manufacturer with an in-house Foodstuff Machinery Research Institute, we engineer the complete line — mixer, aeration, depositor, oven, cooling — as one matched system, and our one-stop service covers plant design, recipe support, installation, operator training, and lifetime after-sales care. With Wanttone, you gain a partner who understands both the machine and the cake it must produce.

Frequently Asked Questions

What cupcake sizes can the line produce?

Standard cupcakes, large muffins, and mini cup cakes are all possible by changing cup size, depositing volume, and baking parameters; molds and depositing heads are interchangeable for fast changeovers.

Can the line handle thicker muffin batter as well as sponge batter?

Yes. The piston-type depositor meters both fluid sponge batter and viscous muffin batter at accurate, adjustable weights.

Which heating sources are available for the oven?

The tunnel oven can be configured for electricity, natural gas, or diesel, selected according to your local energy supply and operating costs.

Can I add filled or decorated cupcakes later?

Yes. The line is modular — jam or cream injection, icing, and topping units can be integrated downstream of cooling, either at purchase or as a later upgrade.

What support do you provide with the line?

Whole-plant layout design, installation and commissioning, batter recipe guidance, operator training, and lifetime maintenance support.
