Hello Panda Bear Filled Biscuit Production Line

A hello panda biscuit production line is a fully automatic system that produces bite-size bear-shaped biscuits with a hollow baked shell and a rich injected filling — chocolate, cream, or fruit jam.

Get a Line Proposal Talk to an Engineer
Reference illustration of Hello Panda Bear Filled Biscuit Production Line equipment

Product Overview

Wanttone’s hello panda biscuit production line integrates dough mixing, sheeting, rotary molding, tunnel oven baking, cooling, and high-speed cream injection into one continuous flow, delivering consistent shape, weight, and filling ratio at industrial scale.

The filling stage sets this line apart: the injection machine fills up to 22 biscuits per stroke at speeds reaching 726 biscuits per minute, with automatic de-molding and pneumatic protection ensuring a precise, smear-free dose in every shell. Recipe-flexible molds and electric, gas, or diesel ovens adapt the line to any market or plant.

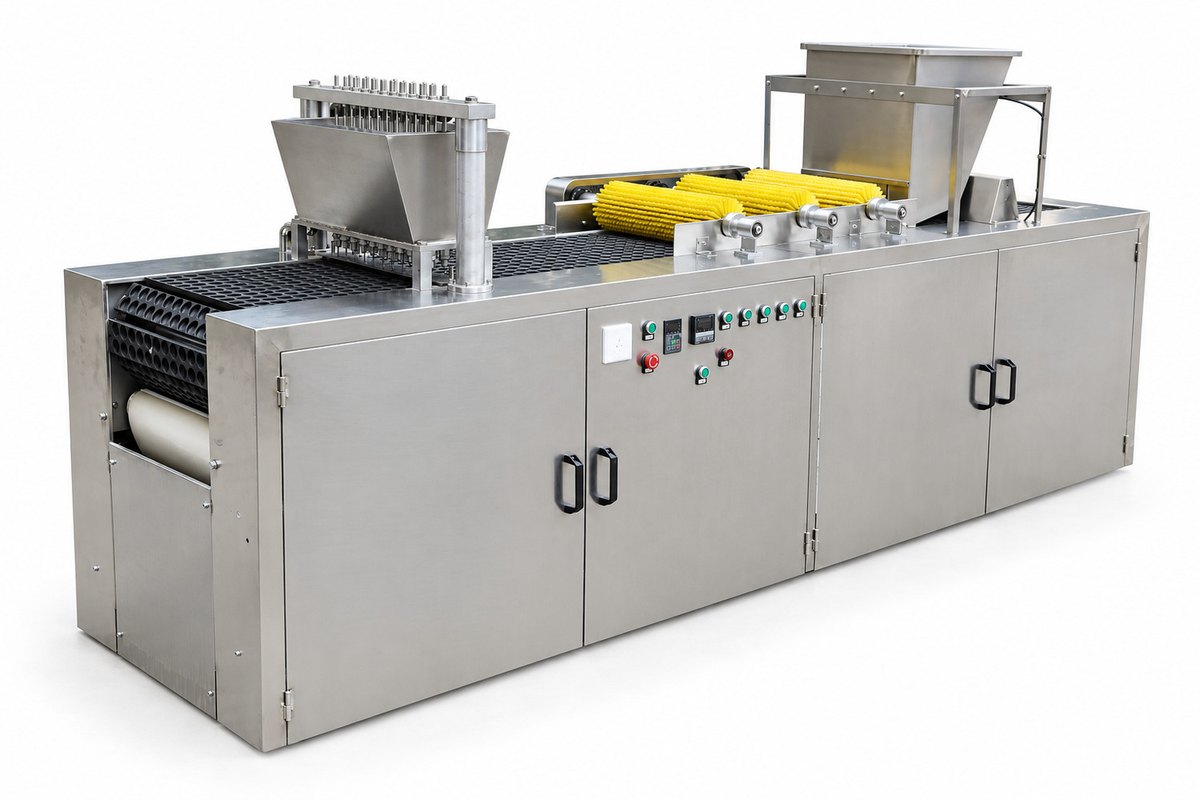

Equipment for the filled-biscuit forming and filling route
Filled biscuit forming equipment

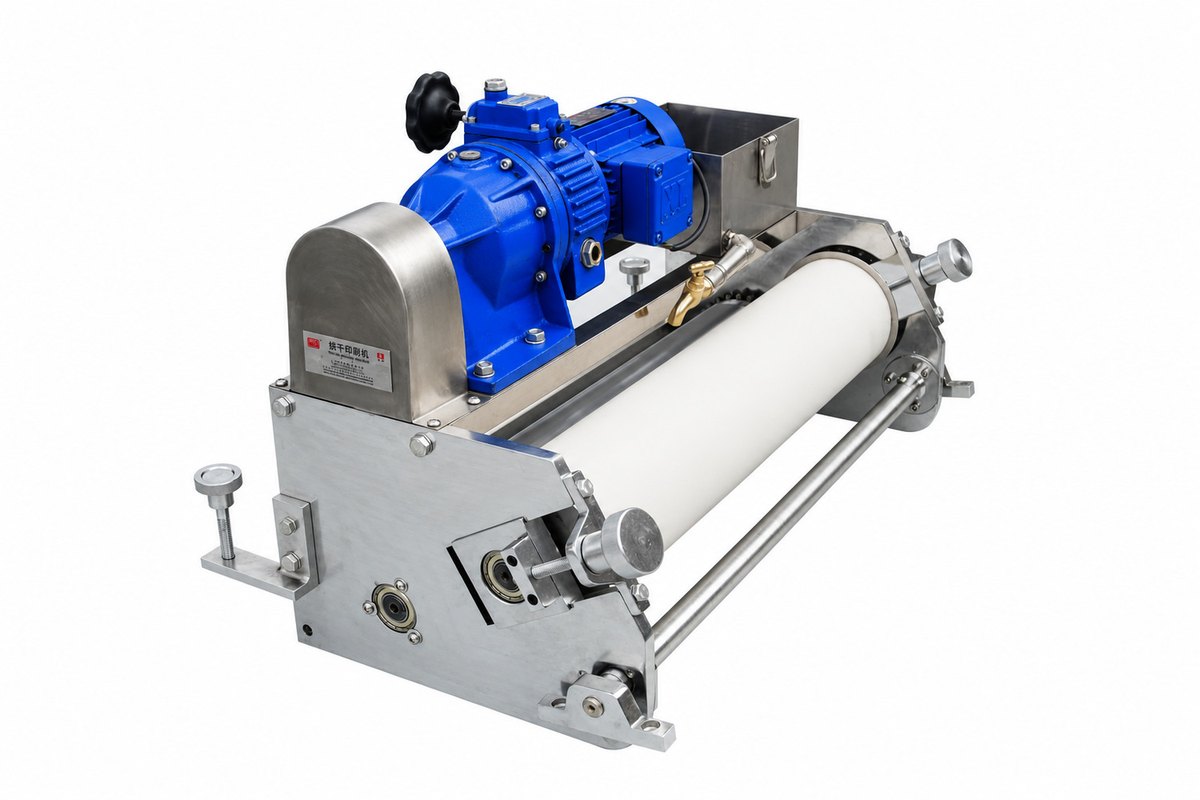

Roller printing machine used for biscuit surface patterns
Biscuit surface printing

Capabilities & Applications

Key Features

  • High-Speed Precision Injection

    A multi-needle injection head fills 22 biscuits per stroke and up to 726 per minute, keeping pace with oven output so filling never becomes your bottleneck.

  • Temperature-Controlled Filling System

    The double-jacketed injection hopper with automatic water supply and heating holds chocolate and cream at ideal viscosity for smooth, drip-free dosing.

  • Intelligent PLC Control

    PLC automation with a touch screen and branded drives, bearings, and pneumatic components ensures accurate positioning, stable filling volume, and simple operation.

  • Complete Turnkey Configuration

    Dough mixer, tilting feeder, sheeter, gauge rolls, rotary moulder, tunnel oven, cooling conveyor, injection machine, and stacker work as one synchronized line.

  • Flexible Molds & Recipes

    Swap molding rollers for panda, bear, koala, and other cartoon shapes; the same line can also run unfilled hard and soft biscuits.

  • Hygienic Food-Grade Construction

    SUS304 covers, hard-chrome-plated side plates, and easy-clean contact parts meet food safety requirements and shorten sanitation time.

Applications

  • Built for hello panda type biscuits, chocolate-filled bear biscuits, cream-injected animal biscuits, and other center-filled snack shells. Typical buyers include children’s snack brands, OEM/ODM co-packers, biscuit factories adding filled products, and confectionery groups worldwide. Quick mold changes also allow standard hard and soft biscuit production.

From Preparation to Packing

  1. Product Preparation

    Confirm the recipe, material condition and batch sequence required for stable production.

  2. Forming & Primary Processing

    Configure the product geometry and process conditions around the agreed finished product.

  3. Thermal or Main Process

    Coordinate time, temperature, energy and line speed with the target output and quality.

  4. Cooling & Finishing

    Stabilize and finish the product before downstream handling and packing.

  5. Packing Handover

    Deliver the product in the orientation, spacing and condition required by the agreed pack format.

Specifications & Configuration

Technical Parameters for Hello Panda Bear Filled Biscuit Production Line
ItemSpecification
Line width options600 / 800 / 1000 / 1200 / 1500 mm
Output capacity500 – 1,250 kg/h (by width and oven length)
Injection needles18–22 needles per stroke
Injection speedUp to 726 biscuits/min
Injection machine sizeApprox. 3550 × 910 × 1440 mm, 1.5 T, 4.5 kW
Typical plant length30 – 200 m
Heating sourceElectric / Gas / Diesel
Control systemPLC + touch screen

Note: All parameters are customizable to your capacity target and workshop layout.

The Wanttone Difference

Filled bear biscuits are not a catalog item for Wanttone — they are a product we know from the inside. Guangdong Wanttone operates its own production line for filled bear-shaped biscuits in Yangjiang, so every design detail has been proven against real daily output, cleaning, and changeover demands. Our predecessor, Yangjiang Biscuit Equipment General Factory, has built automated biscuit machinery since 1981, and our in-house Foodstuff Machinery Research Institute continues to refine injection accuracy and forming technology. As an ISO 9001-certified manufacturer with extensive OEM biscuit production experience, we understand both the machine builder’s engineering and the factory owner’s cost per kilogram — so your line is specified for your real recipe, labor conditions, and payback target.

Frequently Asked Questions

What fillings can the injection machine handle?

Chocolate, cream, jam, strawberry, and peanut butter; the heated jacketed hopper holds fillings at stable viscosity, with PLC-adjustable dosing.

What is the maximum production speed?

Up to 726 biscuits per minute at injection; whole-line throughput is 500–1,250 kg/h depending on line width and oven length.

Can this line make products other than hello panda biscuits?

Yes — changing molds and the recipe lets the line produce other cartoon-shaped filled biscuits, plus standard hard and soft biscuits without filling.

How much factory space do I need?

Typically 30–200 meters depending on capacity. Our engineers design the layout around your workshop, including straight-line and L-shaped configurations.

Do you provide installation, recipe, and training support?

Yes — whole-plant planning, installation and commissioning, operator training, formula guidance, and lifetime after-sales support.
