Tilting Machine (Dough Pouring)

A dough tilting machine — also called a dough pouring or bowl tipper machine — lifts the mixing bowl from the dough mixer and pours the finished dough into the hopper of the downstream dough feeding system.

Request Equipment Advice Talk to an Engineer
Tilting Machine (Dough Pouring)

Product Overview

Wanttone’s industrial tilting machine handles up to 1,000 kg of dough per cycle with powered tipping to an angle of 120° or more, complete with a mechanical locking device for operator safety. It is the essential link between mixing and forming in soda cracker, hard biscuit and soft biscuit production lines, replacing manual dough handling with fast, hygienic, one-person operation.

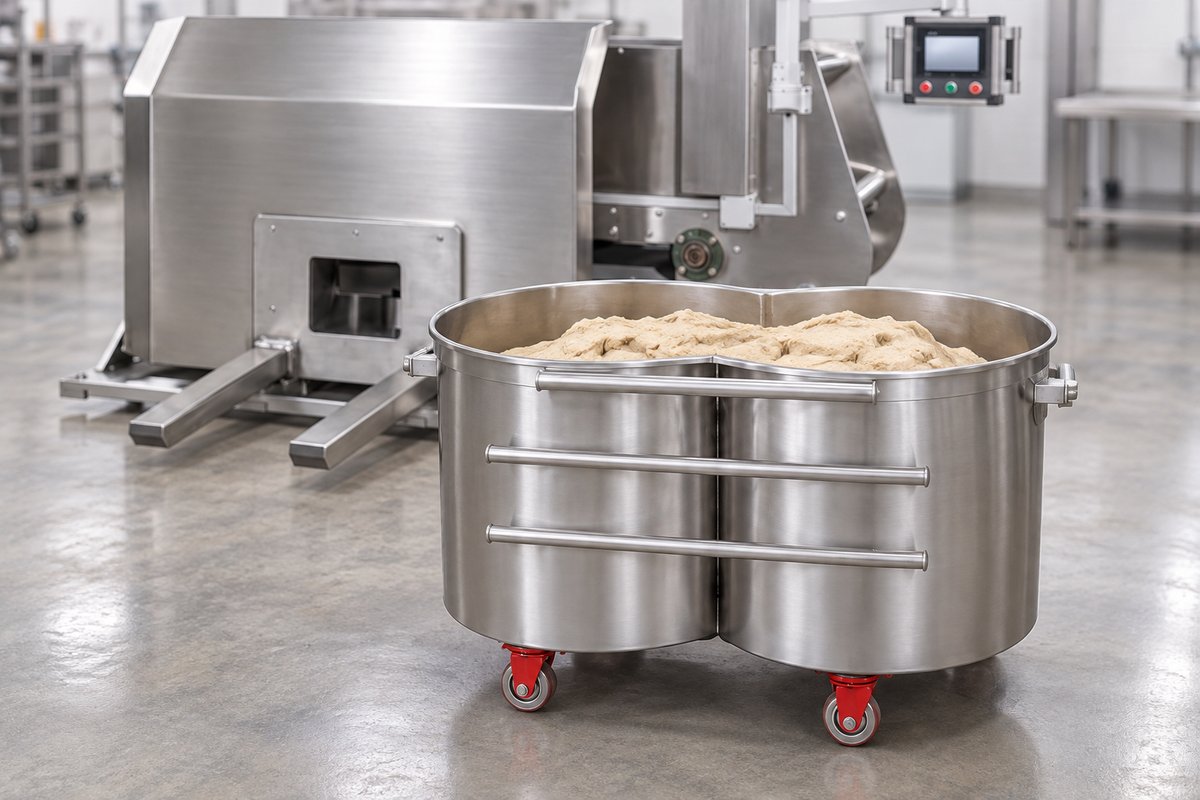

Prepared dough in the wheeled mixing bowl beside the dough transfer equipment

Capabilities & Applications

Key Features

  • High Load Capacity

    Rated for dough batches up to 1,000 kg, matching mixing bowls of 750 kg and above, so one tilt cycle empties even the largest industrial mixer batch.

  • Powered Tipping with ≥120° Pouring Angle

    Motor-driven rotation ensures complete dough discharge without residue left in the bowl, reducing waste and cleaning time.

  • Safety Locking Device

    A mechanical lock secures the bowl cradle at any angle; combined with a guarded structure and an emergency stop, it protects operators during loading, tilting and return.

  • Hygienic, Labor-Saving Operation

    Dough travels directly from bowl to hopper without manual contact, improving food safety and cutting the labor of manual dough transfer.

  • Robust Industrial Construction

    A heavy welded frame, branded drive components and neatly arranged cabling in aluminum trunking deliver long service life in continuous production.

  • Flexible Line Integration

    Discharge height and position are engineered to mate with your dough feeding hopper, conveyor or chunker, whether in a new Wanttone line or an existing plant.

Applications

  • The tilting machine is standard equipment in soda cracker lines, hard biscuit lines and soft biscuit lines wherever dough is mixed in movable bowls — typically paired with vertical dough mixers. It pours dough into the hopper of the automatic dough feeding system, which then portions dough to the laminator, three-roll sheeter or rotary moulder. It is equally valuable in line upgrades, eliminating manual dough carts and reducing the batch turnaround time between mixing and forming.

A Defined Role in the Line

  1. Upstream Requirements

    Confirm the incoming material or product condition, target throughput, infeed height and available utilities.

  2. Core Machine Function

    A dough tilting machine — also called a dough pouring or bowl tipper machine — lifts the mixing bowl from the dough mixer and pours the finished dough into the hopper of the downstream dough feeding system.

  3. Downstream Integration

    Match discharge height, line speed, control signals, guarding and cleaning access with the next operation.

Specifications & Configuration

Technical Parameters for Tilting Machine (Dough Pouring)
ItemSpecification
ModelDT1000
Tilting capacity1,000 kg per cycle
Pouring angle≥120°, with locking device
Matched bowl sizeMixing bowls ≥750 kg
Drive power1.5–3 kW (per configuration)
Machine weight1.5–2.5 T
Power supply380 V/50 Hz, three-phase (customizable)
WiringCased cable arrangement for line installation

Discharge height, cradle dimensions and tipping direction are customized to your bowl and hopper.

The Wanttone Difference

A tilting machine carries a full ton of dough above the floor every cycle — structural integrity and safety engineering are non-negotiable. Wanttone has manufactured biscuit machinery since 1981 under strict ISO 9001 control of materials, welding, machining and inspection, and our tilting machines run daily in our own biscuit factory as well as customer plants worldwide. We engineer the tipping curve, locking mechanism and bowl interface around your specific mixer and hopper, and our one-stop service covers installation, commissioning, safety training and lifetime after-sales support, with skilled technicians regularly dispatched to customer sites. When you choose Wanttone, you choose a dough handling solution designed by engineers who operate biscuit lines themselves.

Frequently Asked Questions

Which mixers and bowls is the tilting machine compatible with?

It is designed for movable-bowl vertical dough mixers of 750 kg batch size and above, including Wanttone mixers and most third-party bowls. Provide your bowl dimensions and we adapt the cradle and clamping accordingly.

How is operator safety ensured during tipping?

The machine combines a mechanical locking device that fixes the bowl at any angle, guarded moving parts, an emergency stop and controlled low-speed tipping. Safety interlocks prevent tilting unless the bowl is correctly seated and locked.

How long does one tilting cycle take?

A typical lift–tilt–pour–return cycle takes about one to two minutes depending on dough consistency and pouring angle, far faster and cleaner than manual transfer, and it keeps pace with standard mixing cycle times.

Can it be added to my existing production line?

Yes. The tilting machine is a classic retrofit upgrade. We survey your mixer position, hopper location and floor space, then customize the frame height, tipping direction and discharge point for seamless integration.

What maintenance does it require?

Maintenance is minimal: periodic lubrication of the drive and pivot points, inspection of the locking device and electrical checks. We supply a spare-parts list and lifetime technical support, with on-site service available.
