Chocolate Conche Refiner

A chocolate conche refiner is the machine that transforms coarse chocolate mass — a blend of cocoa liquor, cocoa butter, sugar, and milk powder — into the smooth, fine-textured, fully flavored chocolate used for coating, molding, and filling.

Request Equipment Advice Talk to an Engineer
Reference illustration of Chocolate Conche Refiner

Product Overview

Combining refining (particle size reduction) and conching (prolonged mixing, aeration, and flavor development) in one vessel, the Wanttone chocolate conche refiner reduces particle fineness to a silky 20–30 microns, drives off moisture and volatile acids, and rounds out the chocolate’s flavor profile. It is the quality-defining first step for any biscuit or bakery plant that produces its own coating chocolate or compound chocolate in-house.

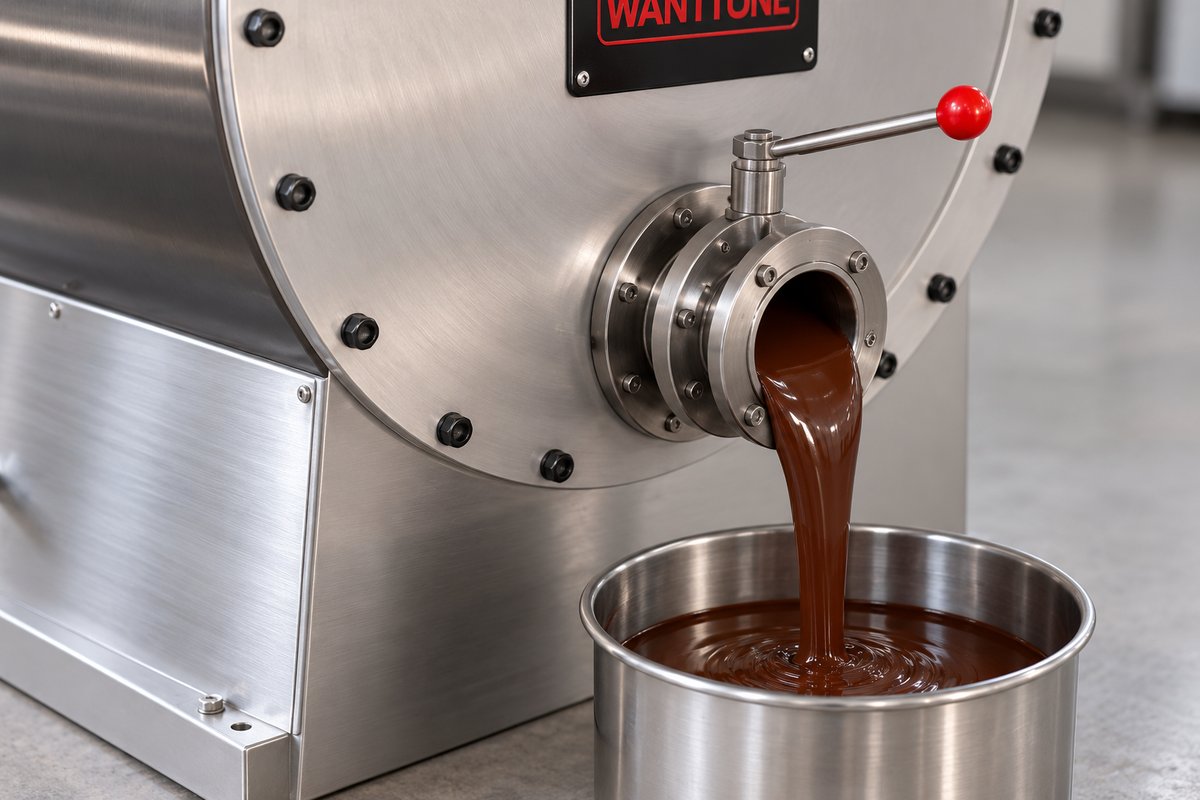

Warm refined chocolate flowing from the conche refiner discharge valve into a stainless-steel vessel

Capabilities & Applications

Key Features

  • Fine, Consistent Refining

    Precision grinding elements reduce chocolate mass to a 20–30-micron fineness, eliminating grittiness and delivering the melt-in-the-mouth texture consumers expect from premium coated biscuits.

  • Full Conching & Flavor Development

    Continuous agitation, aeration, and controlled heating develop aroma, remove residual moisture and acidic notes, and homogenize the fat phase for stable, glossy chocolate.

  • Temperature-Controlled Jacketed Vessel

    Jacketed heating and cooling keep the chocolate mass within the ideal process window throughout long conching cycles, protecting flavor and preventing fat bloom later.

  • Food-Grade Stainless-Steel Build

    All product-contact parts are food-grade stainless steel with a hygienic, accessible interior for thorough cleaning between chocolate types.

  • Batch Sizes to Match Your Plant

    From pilot and medium batches for recipe development and mid-size plants to large industrial vessels for continuous supply of enrobing lines, capacity is customized to your output.

  • Direct Line Integration

    Refined chocolate discharges cleanly into holding tanks, tempering units, or enrobers, forming the upstream half of a complete in-house chocolate coating system.

  • Robust, Low-Maintenance Drive

    A heavy-duty motor and a gearbox with quality bearings deliver stable long-duration operation, with standard wear parts available worldwide.

Applications

  • The chocolate conche refiner serves biscuit, cookie, wafer, and cake producers who manufacture their own coating chocolate, chocolate fillings for sandwich biscuits, compound chocolate, or chocolate-flavored masses. It pairs directly with Wanttone chocolate enrobing machines and chocolate depositors to form a complete in-house chocolate processing chain — from raw mass to coated, cooled finished product.

A Defined Role in the Line

  1. Upstream Requirements

    Confirm the incoming material or product condition, target throughput, infeed height and available utilities.

  2. Core Machine Function

    Precision grinding elements reduce chocolate mass to a 20–30-micron fineness, eliminating grittiness and delivering the melt-in-the-mouth texture consumers expect from premium coated biscuits.

  3. Downstream Integration

    Match discharge height, line speed, control signals, guarding and cleaning access with the next operation.

Specifications & Configuration

Technical Parameters for Chocolate Conche Refiner
ItemSpecification (typical range, customizable)
Refining fineness20–30 microns (per recipe)
Batch capacity50–1000 L common; larger on request
Conching cycle8–24 hours depending on recipe and fineness target
Heating / coolingJacketed vessel with temperature control
AgitationHeavy-duty geared drive, continuous duty
ConstructionFood-grade stainless steel contact parts
DischargePump or valve discharge to holding tank / tempering / enrober

Exact capacity, power, and dimensions are configured to your chocolate formulation and required output — contact us for a tailored datasheet.

The Wanttone Difference

Producing your own coating chocolate only pays off when the conche performs reliably shift after shift — and that is where Wanttone’s dual identity matters. We are not only an equipment manufacturer: our own biscuit factory runs chocolate-coated products, so our engineers understand refining fineness, conching time, and viscosity targets from a producer’s point of view, not just a fabricator’s drawing. Our predecessor, Yangjiang Biscuit Equipment General Factory, has engineered biscuit equipment since 1981, and our in-house Foodstuff Machinery Research Institute continuously refines process equipment design. Every conche refiner ships under ISO 9001 quality management with recipe guidance, on-site installation and commissioning, operator training, and lifetime after-sales support.

Frequently Asked Questions

What does a chocolate conche refiner actually do?

It performs two jobs in one vessel: refining reduces the particle size of the chocolate mass to a smooth 20–30 microns, while conching — prolonged mixing, aeration, and heating — develops flavor, removes moisture and volatile acids, and homogenizes the fat phase.

What fineness can the machine achieve?

A typical target is 20–30 microns, which delivers a smooth mouthfeel for coating and filling chocolate. The exact fineness is set per recipe and confirmed during commissioning with your formulation.

Can it process compound chocolate as well as real chocolate?

Yes. The machine handles cocoa-butter chocolate and compound (vegetable-fat) chocolate masses. Tell us your formulation and we will configure the refining and temperature system accordingly.

How long does a conching cycle take?

Depending on your recipe and target flavor profile, a cycle typically runs from 8 to 24 hours. We help you define the optimum cycle during recipe development and commissioning.

Can the conche connect directly to my enrobing line?

Yes. Refined chocolate discharges into jacketed holding tanks, tempering units, or directly to the enrober circuit. We design the full upstream chocolate supply system as part of your project.
